Ergonomic Handling Systems


  rail-systems

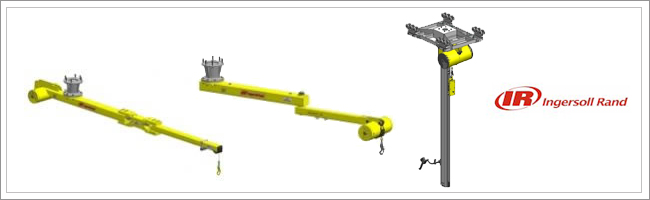

Arm Systems

  • Ergonomic reach — Prevents the need for operator to bend and reach into tight areas causing injury.
  • Precise, strain-free positioning — Float leaves both hands free to raise, lower, or shift the load with virtually no resistance.
  • Versatility — Three styles available to fit a diverse set of applications in nearly any industry.
  • Rugged reliability — Continuous duty with minimal maintenance.
  • Integrated air supply — Prevents tangling of air lines running to below-the-hook handling devices.

  • Column, ceiling, or carriage mount.
  • Up to 10 ft horizontal reach and 500 lb capacity.
  • Includes integrated air balancer available in rear-mount, mid-mount, and front-mount configurations.

arm-systems-700series

Features:

  • Rear-mount balancer offers lowest rotational intertia of all models.
  • Short stack-up for low headroom applications.
  • Two-point pivot providing 270º articulation.
  • Carriage or column mount.
  • Arm lengths of 6, 7, 8, 9, and 10 ft available.
  • Integrated 150, 200, 350, or 500 lb balancer.

top-mount700c-series-arm-systems



Top-Mount 713 Series Arm:

Features:

  • Mid-mount balancer.
  • Over-under boom design with single pivot point for 360° articulation.
  • Carriage or column mount.
  • Arm lengths of 6, 7, 8, 9, and 10 ft available.
  • Integrated 150, 200, 350, or 500 lb balancer.

top-mount713-series-arm-systems



Top-Mount 720 Series Arm:

Features:

  • End-mount balancer.
  • Over-under boom design with single pivot point for 360° articulation.
  • Carriage or column mount.
  • Arm lengths of 6, 7, 8, 9, and 10 ft available.
  • Available only in 150 lb capacity.

top-mount713-series-arm-systems


Parallel link arms:

Parallel link arms utilize an air cylinder with a parallel link structure for lifting / lowering, making them ideal for reach-in applications.

Features:

  • Capable of handling offset loads.
  • Column or carriage mount.
  • Up to 5 ft vertical travel and 800 lb capacity.
  • Optional brakes and limit switches available.

parallel-link-arm

600 Series arms:

600 Series arms utilize a rigid mast to guide the lifting / lowering, which is done by an integrated air balancer.

Features:

  • Capable of handling offset loads.
  • Carriage mount compatible with most rail systems.
  • Up to 8 ft vertical travel and 1,000 lb capacity.
  • Includes integrated air balancer.

600-series-arms



  700 Series Articulating Arm model driver
  600 Series Arm model driver
